ST380CH is a 600v 960a phase controlled thyristor produced by irf company. It is mainly used for dc motor control, controlled dc power supply and ac controller.

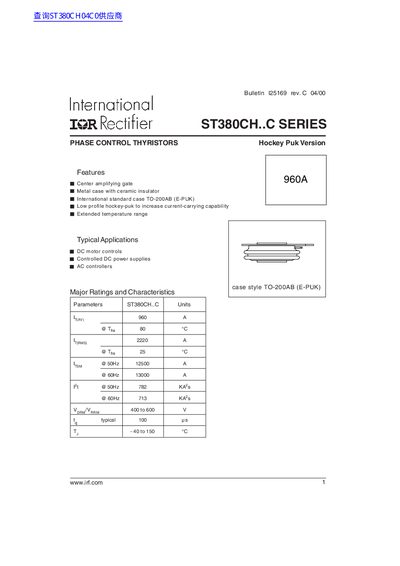

The ST380CH..C series is a high‑current phase‑control thyristor offered in a low‑profile hockey‑puk (TO‑200AB) case. It is intended for DC motor controls, controlled DC power supplies and AC controller applications.
The bulletin provides full electrical ratings (e.g., 960 A peak on‑state current, 13000 A non‑repetitive surge), thermal data (junction‑to‑heatsink resistance as low as 0.04 K/W), mechanical dimensions, and ordering information such as part numbers and case style.
| Maximum peak on‑state current | 960 A |
|---|---|
| Maximum non‑repetitive surge current | 13000 A |
| Operating temperature range | -40 °C to 150 °C |
| Case style | TO‑200AB (E‑PUK) |
The device can handle a peak on‑state current of 960 A.
It is rated for operation from –40 °C up to 150 °C.
The thyristor is housed in a TO‑200AB (E‑PUK) case.
Typical applications include DC motor controls, controlled DC power supplies and AC controllers.
