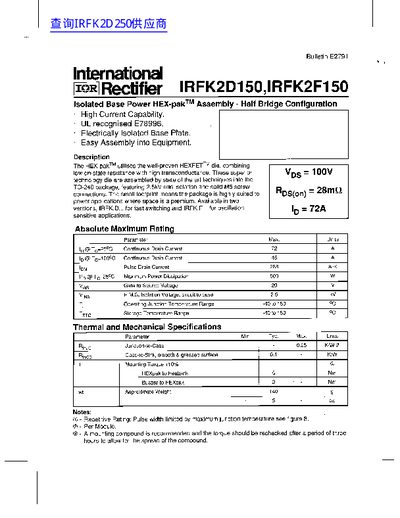

This handbook describes the IRFK2D150 and IRFK2F150 isolated‑base power HEX‑pak modules, highlighting their high current capability, UL recognition, and easy assembly features. It includes a description of the HEX‑pak construction, typical applications, and part numbering.
The document presents absolute maximum ratings, thermal and mechanical specifications, detailed electrical characteristics, typical output and transfer curves, switching time test results, and circuit configuration details. Contact information for worldwide sales offices is also provided.
| Continuous Drain Current (25°C) | 72 A |
|---|---|
| Continuous Drain Current (150°C) | 45 A |
| Maximum Power Dissipation | 500 W |
| Junction‑to‑Case Thermal Resistance | 0.25 K/W |
| Mounting Torque | 105 N·m |
The maximum continuous drain current at 25 °C is 72 A.
The recommended mounting torque is 105 N·m.
The module can dissipate up to 500 W.
