BAY72 small signal diode datasheet

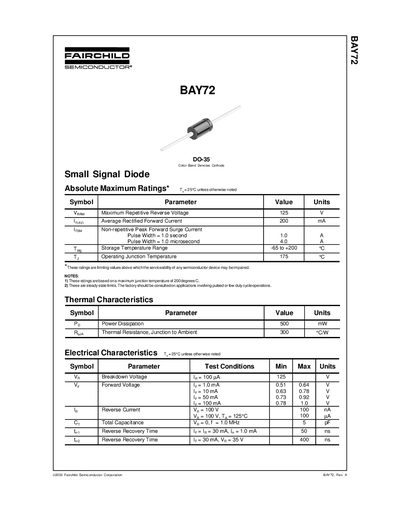

This datasheet describes the Fairchild Semiconductor BAY72 DO‑35 small‑signal diode. It lists absolute maximum ratings, thermal data, electrical characteristics, and product status definitions for the part.
The document includes maximum reverse voltage, forward current limits, power dissipation, thermal resistance, breakdown voltage, forward voltage curves, reverse leakage, capacitance, and reverse recovery times, as well as legal notices and trademark information.
| Maximum Repetitive Reverse Voltage | 125 V |
|---|---|
| Average Rectified Forward Current | 200 mA |
| Power Dissipation | 500 mW |
| Thermal Resistance, Junction‑to‑Ambient | 300 °C·W |
| Forward Voltage @ 1 mA | 0.51‑0.64 V |
| Reverse Current @ 125 V | 100 nA |
The maximum repetitive reverse voltage is 125 V.
The average rectified forward current is rated at 200 mA.
The diode can dissipate up to 500 mW of power.
The storage temperature range is –65 °C to +200 °C.
