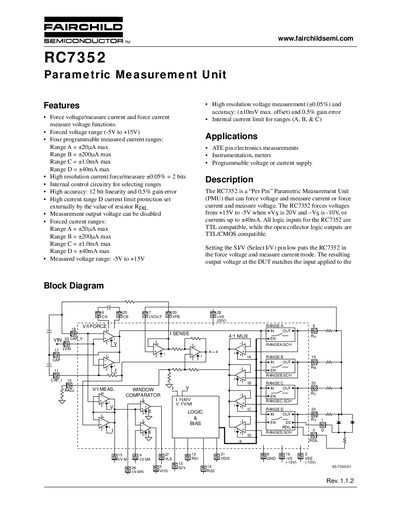

The document describes a parametric measurement unit with functions to measure voltage and current. It has a voltage range of -5V to +15V, four programmable current ranges, high resolution, and high accuracy.
The RC7352 is a "Per Pin" Parametric Measurement Unit that can force voltage and measure current, or force current and measure voltage. It supports TTL‑compatible logic inputs and provides programmable current and voltage ranges for test and instrumentation applications.
The document provides full product specifications, pin descriptions, absolute maximum ratings, DC electrical characteristics, mechanical dimensions, and ordering information for the 28‑pin PLCC package.
| Forced voltage range | -5 V to +15 V |
|---|---|
| Force current range A | +20 µA max |
| Force current range D | +40 mA max |
| Voltage measurement resolution | ±0.05 % |
| Gain error (typical) | ±0.5 % |
| Case operating temperature | 0 °C to 70 °C |
The device can force voltages from –5 V to +15 V.
The recommended case operating temperature range is 0 °C to 70 °C.
