MMBD2838 is a small signal diode.

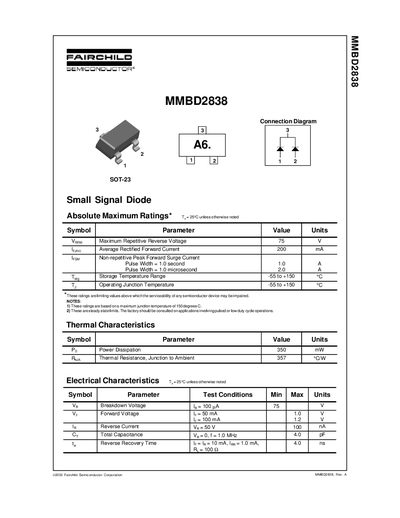

This datasheet contains the connection diagram, absolute maximum ratings, thermal characteristics, and electrical characteristics for the MMBD2838 small‑signal diode. It lists limits such as reverse voltage, forward current, power dissipation, and capacitance, along with test conditions.
The document also includes trademark information, a disclaimer, a life‑support policy stating the part is not authorized for critical life‑support devices, and product‑status definitions that describe the datasheet’s development stage.
| Maximum Repetitive Reverse Voltage | 75 V |
|---|---|
| Average Rectified Forward Current | 200 mA |
| Peak Forward Surge Current (1 µs) | 2.0 A |
| Storage Temperature Range | -55 to +150 °C |
| Power Dissipation | 350 mW |
| Thermal Resistance, Junction to Ambient | 357 °C/W |
| Breakdown Voltage (Ig=100 pA) | 75 V |
| Forward Voltage (If=50 mA) | 1.0 V |
| Reverse Current (V_R=50 V) | 100 nA |
| Total Capacitance (f=1.0 MHz) | 4.0 pF |
| Reverse Recovery Time | 4.0 ns |
The maximum repetitive reverse voltage is 75 V.
It can be stored from –55 °C to +150 °C.
No, Fairchild does not authorize its use in critical life‑support devices without written approval.
It indicates the datasheet contains final specifications, though Fairchild may still make changes to improve design.
