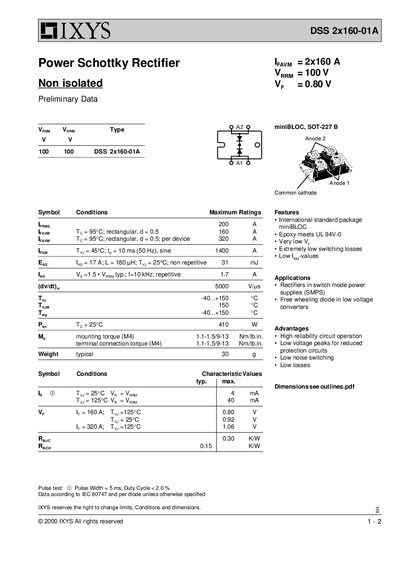

This document is about the 824 DSS 2x160-01A of IXYS, including the characteristics, maximum ratings, applications, advantages and dimensions.
The DSS 2x160-01A is a non‑isolated power Schottky rectifier designed for high‑current, low‑voltage applications such as switch‑mode power supplies and free‑wheeling diodes. It features an international standard miniBLOC SOT‑227 B package, low forward voltage drop, and very low switching losses.
Key specifications include a maximum forward current of 200 A, a reverse voltage rating of 100 V, a typical forward voltage drop of 0.80 V at 25 °C, and a typical weight of 30 g. The device meets UL 94V‑0 epoxy standards and offers high reliability with low noise switching characteristics.
| Maximum forward current | 200 A |
|---|---|
| Reverse voltage rating | 100 V |
| Typical forward voltage drop (25 °C) | 0.80 V |
| Package type | miniBLOC, SOT‑227 B |
| Typical weight | 30 g |
The device is rated for a maximum forward current of 200 A.
The typical forward voltage drop at 25 °C is 0.80 V.
It is supplied in a miniBLOC, SOT‑227 B package.
The typical weight of the device is 30 g.
