Hynix HYMP112S64(L)MP8 DDR2 SDRAM SO-DIMM Datasheet

This is a product description file for Hynix HYMP112S64MP8 series of SDRAMs. It introduces the features and characteristics of the product.

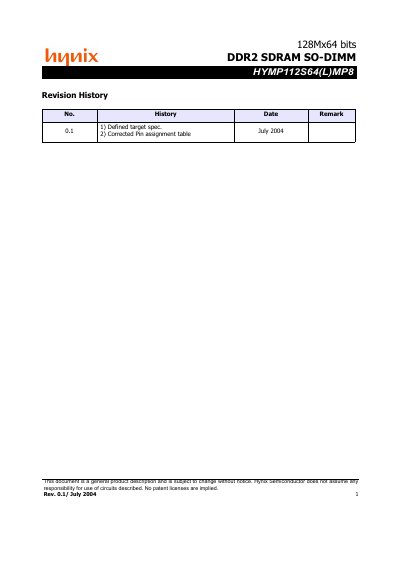

Hynix HYMP112S64(L)MP8 DDR2 SDRAM SO-DIMM Datasheet - cover page
Brand
Hynix
Category
Other device
Document type
Datasheet
Language
English
Pages
17
File format
PDF
File size
406 KB
Published
08 May, 2012
Updated
30 September, 2023
MD5 checksum
3092A2F4F6F4A74CAE1B86A83E6A04CE

About this manual

The HYMP112S64(L)MP8 is an unbuffered 200‑pin DDR2 SDRAM SO‑DIMM organized as a 128M×64 high‑speed memory array, offering a 1 GB capacity in a 67.60 mm × 30.00 mm form factor. It complies with JEDEC DDR2 standards and supports PC2‑3200 (DDR2‑400) and PC2‑4300 (DDR2‑533) data rates.

The document details functional block diagrams, pin assignments, absolute maximum ratings, AC and differential input logic levels, output buffer specifications, and IDD power consumption. It also includes the Serial Presence Detect (SPD) layout and package outline for system integration.

What's inside

  • Description
  • Functional Description
  • Pin Assignment
  • Functional Block Diagram
  • Absolute Maximum Ratings
  • Input AC Logic Level
  • Differential Input AC Logic Level
  • Output Buffer Levels
  • IDD Specifications
  • Serial Presence Detect Specification

Specifications

Capacity1 GB
Form Factor67.60 mm × 30.00 mm
Pin Count200 pins
Operating Voltage (VDD)1.7 V – 1.9 V
Data RatePC2‑3200 (DDR2‑400)

Frequently asked questions

What is the operating voltage range for VDD?

The VDD supply voltage ranges from 1.7 V to 1.9 V.

How many pins does the HYMP112S64(L)MP8 have?

It has a 200‑pin package.

What is the memory capacity of the module?

The module provides a 1 GB capacity (128M × 64).
