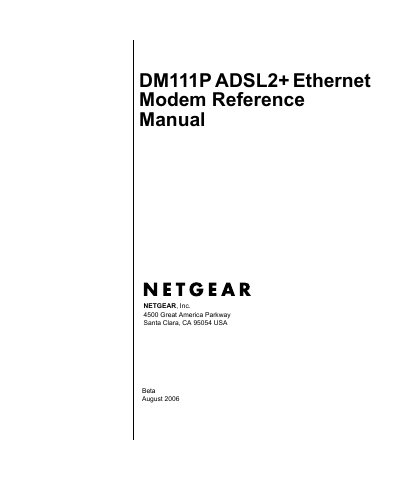

This document is the reference manual for the DM111P ADSL2+ Ethernet Modem released by NETGEAR, Inc. in August 2006. The manual describes the features and characteristics of the product.
This reference manual explains how to install, set up, and manage the Netgear DM111P ADSL2+ Ethernet Modem. It covers everything from unpacking the device to using the web‑based management utility and updating firmware.
The document also includes regulatory compliance information, a detailed technical specifications appendix, and troubleshooting steps for common issues such as LED indicators, internet connectivity, and radio interference.
| Network Protocols | TCP/IP, DHCP, PPPoE, PPPoA, RFC 1483, RFC 1577 |
|---|---|
| Power Adapter Input (North America) | 120 V, 60 Hz |
| Power Adapter Output | 12 V AC @ 1.0 A |
| Dimensions | 6.9" x 4.7" x 1.1" (175 mm x 119 mm x 28 mm) |
| Weight | 0.7 lb (0.3 kg) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | Up to 90 % non‑condensing |
| LAN Interface | 10BASE‑T or 100BASE‑Tx, RJ‑45 |
| WAN Interface | ADSL, ADSL2+, Dual RJ‑11 (pins 2 & 3) |
| EMC Compliance | FCC Part 15 Class B, VCCI Class B, EN 55 022 (CISPR 22) |
Reorient or relocate the receiving antenna, increase the separation between the modem and the receiver, connect the modem to a different outlet, or consult a dealer or experienced radio/TV technician for help.
Press the Reset button on the modem as described in the troubleshooting section to restore default settings and password.
