AD8061/AD8062/AD8063 are low cost, 300MHz rail-to-rail amplifier with low distortion and low power consumption, suitable for video, image processing and other applications.
The AD8061, AD8062 and AD8063 are rail‑to‑rail output voltage‑feedback amplifiers designed for high‑speed, low‑cost applications. They provide a wide input common‑mode range and can operate from single supplies as low as 2.7 V.

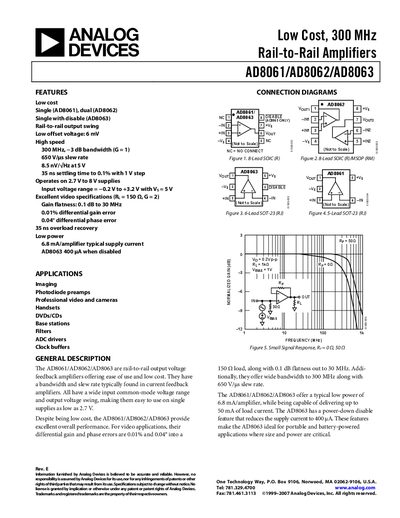

Key features include up to 300 MHz –3 dB bandwidth, 650 V/µs slew rate, low offset voltage (6 mV), and a power‑down disable mode for the AD8063 that reduces supply current to 400 µA. The datasheet includes typical performance curves, connection diagrams for SOIC, MSOP and SOT‑23 packages, and an ordering guide.
| Bandwidth (‑3 dB) | 300 MHz |
|---|---|
| Slew Rate | 650 V/µs |
| Typical Supply Current | 6.8 mA per amplifier |
| Power‑down Disable Current (AD8063) | 400 µA |
| Operating Supply Voltage Range | 2.7 V to 8 V |
Each amplifier typically draws 6.8 mA from the supply.
When disabled, the AD8063 reduces its supply current to about 400 µA.
The amplifiers have a –3 dB bandwidth of up to 300 MHz.
They can operate from single‑supply voltages as low as 2.7 V up to 8 V.
