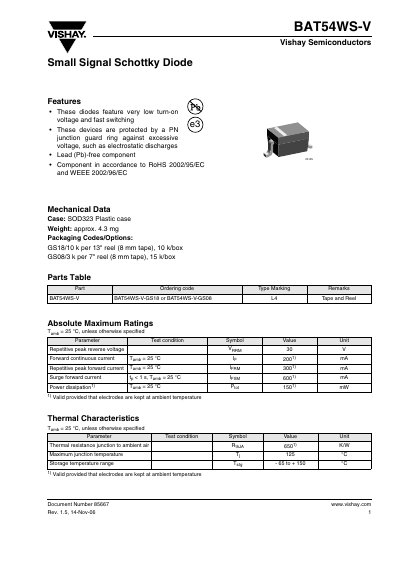

The BAT54WS-V is a small signal Schottky diode produced by Vishay Semiconductors. It features very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges. The device is lead-free and complies with RoHS 2002/95/EC and WEEE 2002/96/EC standards.
The BAT54WS-V is a low‑turn‑on voltage, fast‑switching small‑signal Schottky diode packaged in a SOD323 plastic case. It is lead‑free, RoHS compliant, and offered in tape‑and‑reel options for automated assembly.
The document lists absolute maximum ratings, thermal characteristics, and detailed electrical parameters such as a 30 V reverse voltage rating, 200 mA forward current, 150 mW power dissipation, and typical forward voltage values across a range of currents. Package dimensions and environmental policy statements are also included.
| Reverse peak voltage (VRRM) | 30 V |
|---|---|
| Forward continuous current (IF) | 200 mA |
| Power dissipation (Ptot) | 150 mW |
| Thermal resistance (RthJA) | 650 K/W |
| Maximum junction temperature (Tj) | 125 °C |
| Forward voltage at 10 mA (VF) | 400 mV |
| Package type | SOD323 |
| RoHS compliance | Yes |
The diode can withstand a repetitive peak reverse voltage of 30 V.
At 10 mA forward current, the typical forward voltage is 400 mV.
It is supplied in a SOD323 plastic case.
Yes, the component is lead‑free and complies with RoHS 2002/95/EC.
