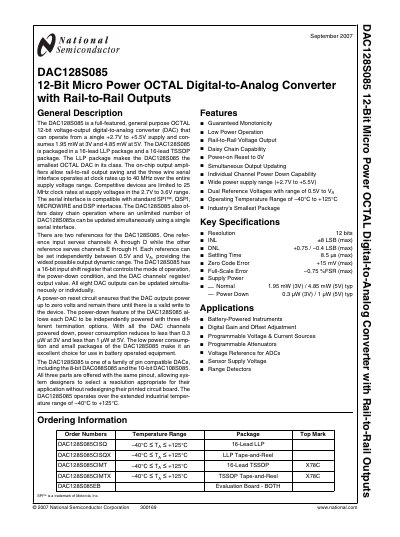

The DAC128S085 is a 12-bit micro power octal digital-to-analog converter with rail-to-rail outputs, which can operate from a single +2.7V to +5.5V supply and consumes only 1.95 mW of power.
The DAC128S085 is a full‑feature, 12‑bit octal DAC that operates from a single +2.7 V to +5.5 V supply and consumes as little as 1.95 mW at 3 V. It is offered in 16‑lead LLP and TSSOP packages, providing the smallest octal DAC in its class. The device includes rail‑to‑rail output amplifiers, a three‑wire serial interface compatible with SPI, QSPI, Microwire and DSP, and supports daisy‑chain operation for unlimited devices.
Key features include guaranteed monotonicity, low power operation, dual reference voltages (0.5 V to VREF), and a wide operating temperature range of –40 °C to +125 °C. The datasheet provides detailed electrical characteristics, pin configurations, timing diagrams, and ordering information for designers.
| Resolution | 12 bits |
|---|---|
| Supply Voltage | +2.7 V to +5.5 V |
| Normal Power Consumption | 1.95 mW (3 V) / 4.85 mW (5 V) typ |
| Power‑Down Consumption | 0.3 pW (8 V) / 1 pW (5 V) typ |
| Output Load Capacitance | 0 to 1500 pF |
| SCLK Frequency | Up to 40 MHz |
| Operating Temperature Range | -40 °C to +125 °C |
| Integral Non‑Linearity (INL) | +8 LSB (max) |
The DAC operates from a single supply voltage of +2.7 V to +5.5 V.
Typical normal power consumption is 1.95 mW at a 3 V supply.
Yes, the DAC supports unlimited daisy‑chain operation using a single serial interface.
The three‑wire serial interface can operate at clock rates up to 40 MHz.
