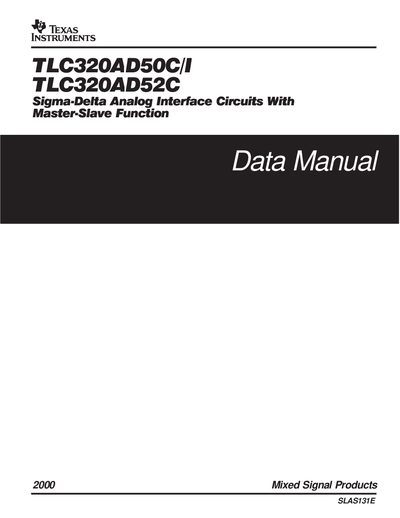

2000 Mixed Signal Products Data Manual is a document that provides information about the specifications of TI's semiconductor products.
The TLC320AD50C/I is a sigma‑delta analog interface circuit that supports master‑slave operation and provides both ADC and DAC channels. The datasheet details its functional block diagram, terminal assignments, register functions, and timing characteristics for primary and secondary serial communications.
The document includes sections on electrical characteristics such as clock frequency, filter settings, and supply requirements, as well as mechanical data for the R‑PDSO‑G28 plastic small‑outline package. It also lists ordering information, definitions, and application notes for integrating the device into systems.
| Master Clock (MCLK) | 8.192 MHz |
|---|---|
| Filter Frequency (fg) | 8 kHz |
| Supply Voltage (DVpp) | 5 V |
| Power‑Supply Rejection (AVpp) | 5 V |
| Package Type | R‑PDSO‑G28 plastic small‑outline |
The device uses a master clock of 8.192 MHz.
It operates from a 5 V supply (DVpp = 5 V).
It is supplied in an R‑PDSO‑G28 plastic small‑outline package.
