The TPS6101x family are high‑efficiency boost converters intended for single‑cell or dual‑cell battery‑operated products such as audio players, remote controls and medical devices. They integrate a synchronous rectifier, low‑battery detector, autodischarge and power‑save mode, delivering up to 200 mA output current while starting up from as low as 0.9 V and operating down to 0.8 V.

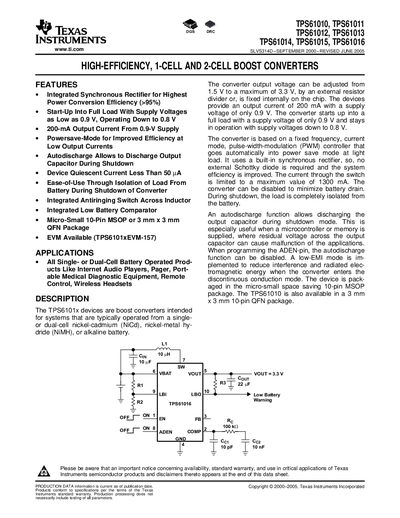

The datasheet provides full electrical specifications, functional block diagrams, pin descriptions, package dimensions (10‑pin MSOP or 3 mm × 3 mm QFN) and mechanical drawings, along with recommended operating conditions and absolute maximum ratings for designers.
| Efficiency | >95 % |
|---|---|
| Output Current | 200 mA |
| Start‑up Voltage | 0.9 V (full load), 0.8 V (operating) |
| Maximum Junction Temperature | 150 °C |
| Package Options | 10‑Pin MSOP or 3 mm × 3 mm QFN |
| Operating Temperature Range | -40 °C to 85 °C |
The converter can start‑up into full load with a supply voltage as low as 0.9 V and continues operating down to 0.8 V.
It provides up to 200 mA of output current when powered from a 0.9 V supply.
The devices are offered in a 10‑pin MSOP package and a 3 mm × 3 mm QFN package.
