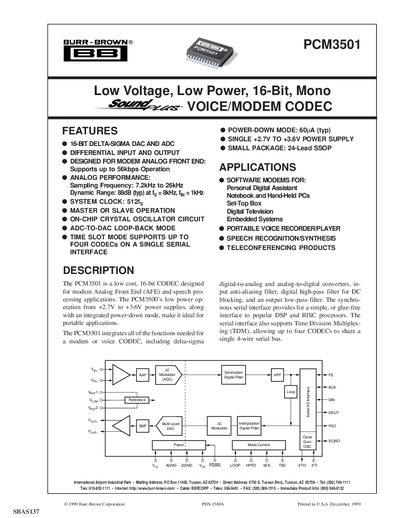

The PCM3501 is a 16-bit audio codec from Burr-Brown Corporation. It supports sampling frequencies from 7.2 kHz to 26 kHz.
The PCM3501 is a 16‑bit delta‑sigma codec designed for modem analog front‑end and speech‑processing applications. It integrates ADC and DAC sections, differential inputs and outputs, on‑chip anti‑aliasing and high‑pass filters, and a synchronous serial interface that can operate as master or slave.
The device operates from a single 2.7 V to 3.6 V supply, draws only 60 µA in power‑down mode, and supports sampling frequencies from 7.2 kHz to 26 kHz with a typical dynamic range of 88 dB. Up to four PCM3501 units can share one 4‑wire serial bus using time‑slot mode.
| Resolution | 16 Bits |
|---|---|
| Sampling Frequency | 7.2 kHz – 26 kHz |
| Dynamic Range | 88 dB (typ) |
| Supply Voltage | 2.7 V – 3.6 V |
| Power‑down Current | 60 µA (typ) |
| Operating Temperature Range | -25 °C to +85 °C |
The PCM3501 operates from a single supply of 2.7 V to 3.6 V.
Up to four PCM3501 devices can share one 4‑wire serial bus using time‑slot mode.
The device is rated for operation from –25 °C up to +85 °C.
