The product is a wireless network card that can be connected to Pocket PC, supports 802.11g and 802.11b protocols, and has a maximum transmission speed of 54 Mbps.

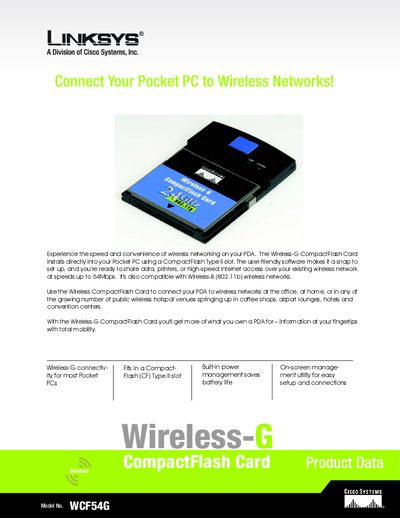

This manual describes the Linksys WCF54G Wireless‑G CompactFlash Card, a Type II CF card that adds 802.11b/g wireless connectivity to Pocket PC devices. It explains the required hardware, compatible operating systems, and how to install the card and accompanying software.
The guide also lists the card's technical specifications, security features, and regulatory information, and provides contact details for technical support and warranty service.
| Standards | IEEE 802.11b, IEEE 802.11g, Type II CompactFlash |
|---|---|
| Transmit Power (802.11g) | 15 dBm Typical @ Normal Temp Range |
| TX Peak Current | 350 mA @ 54 Mbps |
| RX Peak Current | 270 mA @ 54 Mbps |
| Security | WEP Encryption (64‑bit, 128‑bit) |
| Dimensions | 1.69" × 0.27" × 2.32" (43 mm × 6.9 mm × 5.9 mm) |
| Unit Weight | 0.03 kg |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Operating Humidity | 5 % to 95 %, Non‑Condensing |
| Storage Humidity | 5 % to 95 %, Non‑Condensing |
A Pocket PC with a Type II CompactFlash slot running Pocket PC 2002 or later is required.
It supports IEEE 802.11b and IEEE 802.11g wireless standards.
The card provides WEP encryption with both 64‑bit and 128‑bit key lengths.
The card can achieve a throughput of up to 54 Mbps.
