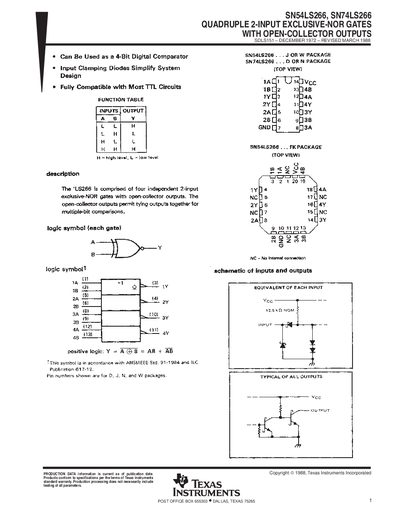

SN54LS266 and SN74LS266 are quadruple 2-input exclusive-NOR gates with open-collector outputs.
The document provides production data for the SN54LS266 and SN74LS266 devices, which are quadruple 2‑input exclusive‑NOR gates with open‑collector outputs. It includes important notices, warranty terms, and usage restrictions for safety‑critical, military, and automotive applications.
Packaging details are listed for each device variant, covering package type, pin count, lead/ball finish, and RoHS compliance. Additional sections give tape‑and‑reel dimensions and material information for the various package options.
| Package Type (SN54LS266J) | CDIP |
|---|---|
| Package Type (SN74LS266D) | SOIC |
| Lead/Ball Finish | Green (RoHS & no Sb/Br) |
| Tape Reel Diameter (SN74LS266DR) | 330.0 mm |
The SN54LS266J is supplied in a CDIP package.
Yes, they are listed as Green (RoHS & no Sb/Br), indicating RoHS compliance.
The reel diameter is 330.0 mm, width 16.4 mm, and the package height is 33.0 mm.
