This is a document about the packaging information of TI SN74LS136N

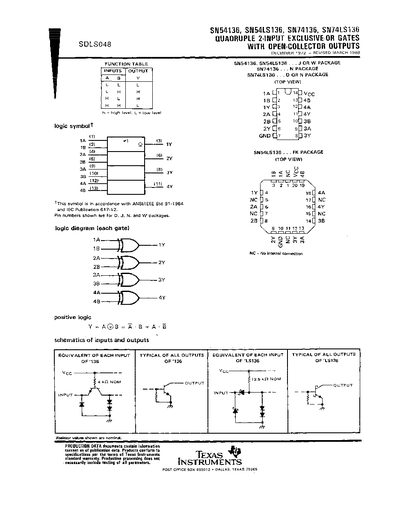

The document provides detailed information for the SN54136, SN74136, SN54LS136 and SN74LS136 quad 2‑input exclusive‑OR gates. It includes functional tables, pin configurations, and logic symbols for the various package types (J, N, D, W).\n\nTechnical specifications such as supply voltage ranges, input and output voltage levels, current limits, propagation delays, and absolute maximum ratings are listed. Packaging options, material specifications, mechanical drawings, and legal notices are also included.
| Supply voltage VCC (min/nom/max) | 4.5 V / 5 V / 5.5 V |
|---|---|
| High‑level input voltage VIH | 2 V (min) |
| Low‑level input voltage VIL | 0.8 V (min) |
| High‑level output voltage VOH | 5.5 V (typ) |
| Low‑level output current IOL | 16 mA |
The SN54136 operates with a supply voltage of 4.5 V minimum, 5 V nominal, and 5.5 V maximum.
The maximum low‑level output current is 16 mA.
