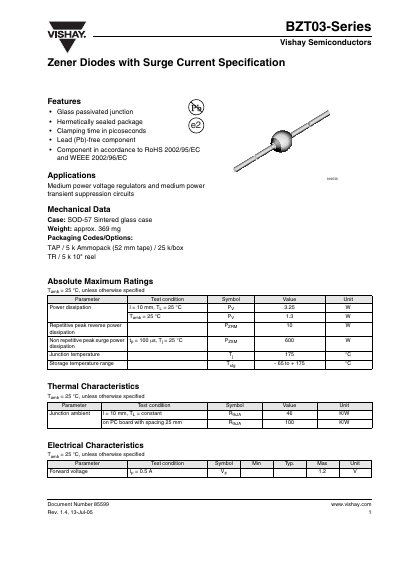

This document is the specification sheet of BZT03 series products, which introduces the features and characteristics of the products, including power, voltage, package and other information.
The BZT03-Series Zener diodes from Vishay are glass‑passivated, hermetically sealed devices designed for medium‑power voltage regulation and transient‑suppression applications. The datasheet provides mechanical data, absolute maximum ratings, thermal and electrical characteristics, and typical performance curves.
Key features include a SOD‑57 sintered‑glass case, lead‑free construction compliant with RoHS, and a wide range of voltage options from 6 V to 300 V. The document also contains Vishay’s environmental policy and legal disclaimer.
| Package | SOD-57 |
|---|---|
| Weight | approx. 369 mg |
| Repetitive peak reverse power dissipation (PZRM) | 10 W |
| Maximum junction temperature (Tj) | 175 °C |
| Storage temperature range | -65 °C to +175 °C |
They are supplied in a SOD‑57 sintered glass case.
Yes, they are lead‑free and meet RoHS 2002/95/EC requirements.
They can be stored from –65 °C up to +175 °C.
