SN74HC7032N is a quad input voltage driven quad OR gate from TI. It has a wide operating voltage range of 2V to 6V. The output can drive 10 LSTTL loads and its gate delay is 14ns. The input current is 1µA and it has temperature-compensated threshold levels and high noise immunity.

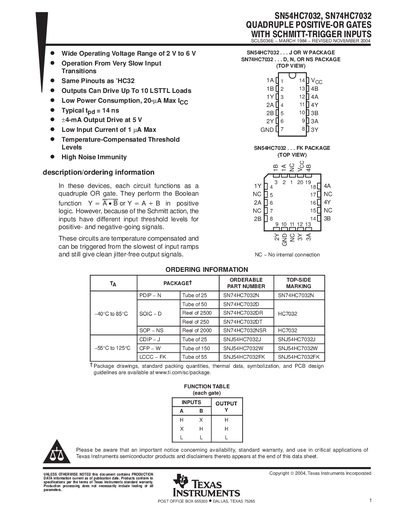

The SN54HC7032 and SN74HC7032 are quad positive‑OR gates with Schmitt‑trigger inputs, providing reliable logic functions over a wide voltage range. The devices feature low input current, high noise immunity, and can drive up to 4 mA output loads.
The document lists electrical characteristics, recommended operating conditions, ordering information, and detailed mechanical drawings for various package types (PDIP, SOIC, NS, etc.). It also includes important notices, packaging options, and material specifications.
| Supply voltage range | 2 V to 6 V |
|---|---|
| Output drive current | 4 mA at 5 V |
| Operating temperature range | -55 °C to 125 °C |
| Package types | PDIP, SOIC, NS, etc. |
The devices operate from 2 V up to 6 V.
Each part contains four positive‑OR gates (quadruple OR gate).
It can source up to 4 mA at a 5 V supply.
The parts are offered in PDIP, SOIC, NS, and other package styles.
