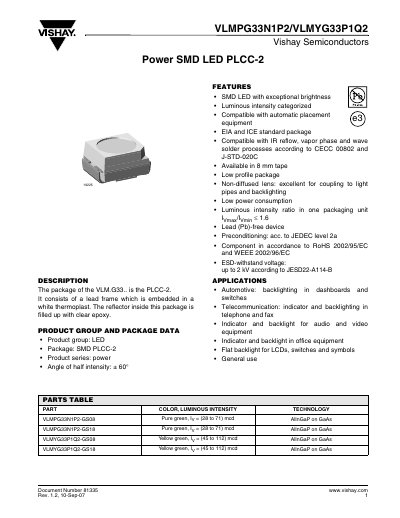

VLMPG33N1P2/VLMYG33P1Q2 is an SMD LED PLCC-2 with exceptional brightness, compatible with automatic placement equipment, compatible with IR reflow, vapor phase and wave soldering processes, and can be used in automotive, telecommunications, audio and video equipment, and office equipment.
The Vishay VLMPG33N1P2 and VLMYG33P1Q2 are high‑brightness power SMD LEDs supplied in a PLCC‑2 package. They are designed for automotive backlighting, telecommunications indicators, LCD backlights and general lighting applications. The devices feature low power consumption, a non‑diffused lens suitable for light‑pipe coupling, and comply with RoHS and lead‑free requirements.
The document provides detailed electrical and optical characteristics, absolute maximum ratings, packaging dimensions, tape‑and‑reel handling instructions, storage guidelines, and environmental compliance information. It also includes recommended soldering profiles and safety notices for moisture‑sensitive handling.
| Forward voltage (30 mA, green) | 2.5 V |
|---|---|
| Forward voltage (30 mA, yellow‑green) | 1.7 V – 2.5 V |
| Reverse voltage (IR = 10 µA) | 5 V |
| Power dissipation | 130 mW |
| Junction temperature (Tj) | 125 °C |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -40 °C to +100 °C |
| Thermal resistance (junction‑to‑ambient) | 400 K/W |
Store the devices at 10 °C to 30 °C with humidity not exceeding 60 % RH; a dry box is recommended once the anti‑static bag is opened.
The LEDs are rated for a reverse voltage of 5 V (IR = 10 µA).
