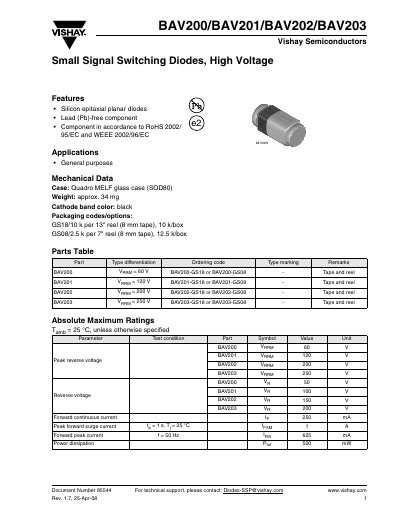

BAV200/BAV201/BAV202/BAV203 is a small signal switching diode produced by Vishay Semiconductors. The diode has a silicon epitaxial planar structure, is lead-free, and meets RoHS 2002/ 95/EC and WEEE 2002/96/EC standards. It is suitable for general use.
The BAV200, BAV201, BAV202 and BAV203 are silicon epitaxial planar diodes designed for general‑purpose high‑voltage switching applications. They are lead‑free, RoHS compliant, and offered in a compact Quadro MELF (SOD80) glass package.
Key specifications include peak reverse voltages from 60 V to 250 V, a forward continuous current of 250 mA, and a power dissipation of 500 mW. Thermal resistance is 500 K/W with a maximum junction temperature of 175 °C, and the devices are supplied on tape‑and‑reel reels for automated assembly.
| Peak reverse voltage (VRRM) BAV200 | 60 V |
|---|---|
| Peak reverse voltage (VRRM) BAV201 | 120 V |
| Peak reverse voltage (VRRM) BAV202 | 200 V |
| Peak reverse voltage (VRRM) BAV203 | 250 V |
| Forward continuous current (IF) | 250 mA |
| Peak forward surge current (IFSM) | 1 A |
| Power dissipation (Ptot) | 500 mW |
| Thermal resistance junction‑to‑ambient (RthJA) | 500 K/W |
| Maximum junction temperature (Tj) | 175 °C |
| Storage temperature range (Tstg) | -65 to +175 °C |
| Reverse recovery time (trr) | 50 ns |
The BAV202 diode is rated for a peak reverse voltage of 200 V.
All devices in the series have a forward continuous current rating of 250 mA.
Yes, they are lead‑free components and comply with RoHS 2002/95/EC.
They are supplied in a Quadro MELF glass case (SOD80).
