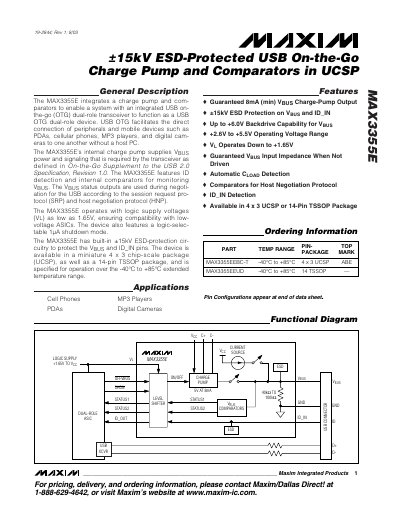

The MAX3355E is a USB OTG dual-role device from MAXIM that integrates a charge pump and comparators to enable a system with an integrated USB on-the-go (OTG) dual-role transceiver to function as a USB OTG dual-role device.
The MAX3355E integrates a charge pump and comparators to enable USB On‑the‑Go (OTG) dual‑role operation. It supplies VBUS power with a guaranteed 8 mA output, provides ID detection, and includes internal comparators for host negotiation protocols. The device operates from a low logic supply voltage of 1.65 V and offers ±15 kV ESD protection on VBUS and ID_IN pins.
The part is available in a 4 × 3 UCSP package and a 14‑pin TSSOP package, and is specified for an extended temperature range of –40 °C to +85 °C. Typical application circuits, electrical characteristics, and layout recommendations are provided to aid designers in implementing the component in USB OTG systems.
| Supply Voltage (VCC) | 2.6 V to 5.5 V |
|---|---|
| Logic Supply Voltage (VL) | 1.65 V |
| VBUS Charge‑Pump Output Current | 8 mA (minimum) |
| ESD Protection (VBUS, ID_IN) | ±15 kV |
| Operating Temperature Range | –40 °C to +85 °C |
| Package Types | UCSP 4 × 3, TSSOP 14‑pin |
The device guarantees a minimum VBUS charge‑pump output of 8 mA.
Connect the SHDN pin to GND; the supply current drops to less than 1 µA.
It provides ±15 kV ESD protection on both the VBUS and ID_IN pins.
The part is offered in a 4 × 3 UCSP package and a 14‑pin TSSOP package.
