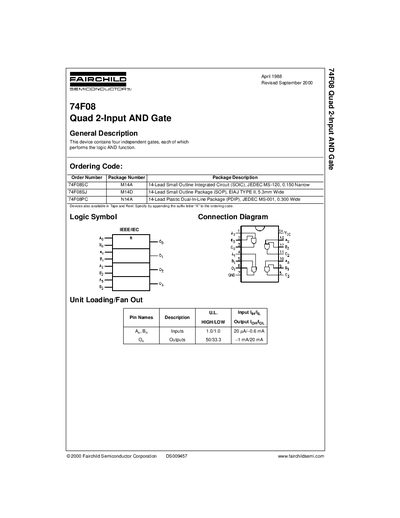

This document describes a quad 2-input AND gate integrated circuit called 74F08. It contains four independent gates, each performing the logic AND function. The product has high-level input current and low-level input current, and the output has a high current-carrying capacity.
The 74F08 contains four independent AND gates that perform the logic AND function. It is offered in several packages, including 14‑lead SOIC, SOP, and PDIP, with ordering codes 74F08SC, 74F08SJ, and 74F08PC.
Key specifications include absolute maximum ratings such as –65 °C to +150 °C storage temperature, recommended operating conditions of 0 °C to +70 °C and a supply voltage of 4.5 V to 5.5 V, and detailed DC and AC electrical characteristics like input HIGH voltage of 2.0 V and propagation delay of about 3 ns. Physical dimensions and land‑pattern recommendations are also provided for each package.
| Storage temperature range | –65 °C to +150 °C |
|---|
