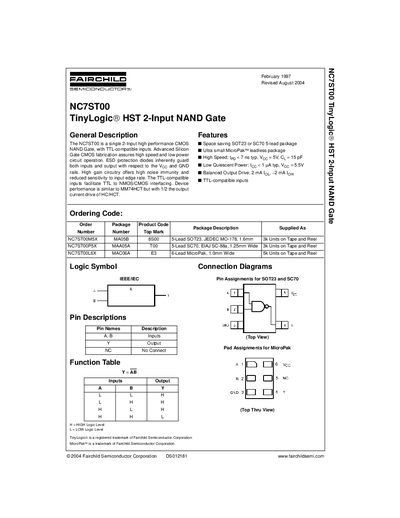

The NC7ST00 TinyLogic HST 2-Input NAND Gate is a high performance CMOS NAND Gate with TTL-compatible inputs.
The NC7ST00 is a single 2‑input high‑performance CMOS NAND gate with TTL‑compatible inputs. It offers high speed (typical propagation delay under 7 ns), low quiescent power, and balanced output drive of ±2 mA. The device includes ESD protection diodes on inputs and output and is offered in space‑saving SOT23, SC70, and leadless MicroPak packages.
The datasheet lists absolute maximum ratings, recommended operating conditions, detailed DC and AC electrical characteristics, tape‑and‑reel packaging specifications, and mechanical dimensions. A life‑support policy disclaimer is also included.
| Propagation delay (t_pp) typ | < 7 ns |
|---|---|
| Input capacitance (C_in) | 15 pF |
| Balanced output drive | ±2 mA |
The device can source or sink up to 2 mA of current.
