SKQY series micro switch is high density surface mount micro switch, with dustproof structure, high reliability, height only 2.5mm, suitable for high density mounting.

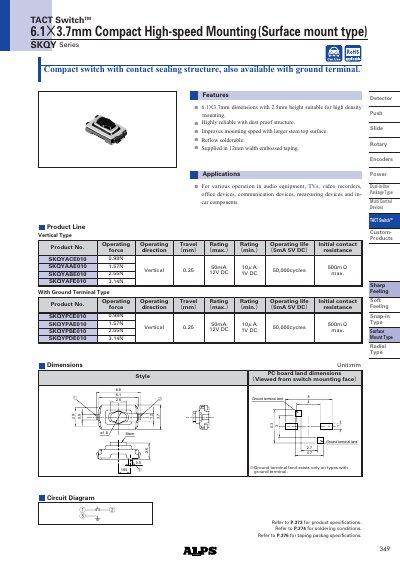

This datasheet describes the SKQY series TACT SwitchTM, a compact surface‑mount switch available in sharp‑feeling and soft‑feeling variants. It lists mechanical characteristics such as operating force (1.57 N / 0.98 N), travel (0.25 mm), and overall dimensions (6.1 mm × 3.7 mm × 2.5 mm), as well as electrical ratings including 12 V DC and a 50,000‑cycle life.
The document also covers recommended soldering conditions (up to 260 °C for 3 s, pre‑heat 180 °C) and packaging information, noting that the switches are supplied in 12 mm‑wide embossed taping suitable for automatic insertion. Applications include audio equipment, TVs, video recorders, office devices, communication gear, measurement instruments, and in‑car components.
| Operating force (sharp feeling) | 1.57 N |
|---|---|
| Operating force (soft feeling) | 0.98 N |
| Operating life | 50,000 cycles |
| Packaging | 12 mm width embossed taping |
The switch has an operating force of 1.57 N for the sharp‑feeling type and 0.98 N for the soft‑feeling type.
Reflow soldering can be performed up to 260 °C for a maximum of 3 seconds, with a pre‑heat temperature of 180 °C.
The switches are supplied in 12 mm‑wide embossed taping, suitable for auto‑insertion reels.
It is used in audio equipment, televisions, video recorders, office devices, communication devices, measuring instruments, and in‑car components.
