The document introduces different types of electronic components, including rotary knobs, slide levers, semi-fixed levers, and controllers. These components are characterized by excellent operability, compact size, and suitability for applications such as mixers.

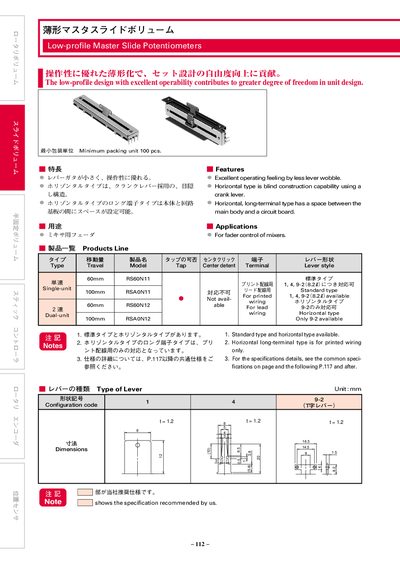

The ALPS low‑profile master slide potentiometers are designed for compact unit layouts and offer excellent operating feel with reduced lever wobble. Two main types are offered: a standard type and a horizontal type with a blind‑construction crank lever, the latter also available with a long‑terminal version for extra space between the body and circuit board.
The document lists key specifications such as travel distance, resistance values, attenuation and insertion loss, as well as detailed dimensions, terminal styles, circuit diagrams and mounting‑surface options for both single‑unit and dual‑unit configurations. This manual is written in Japanese.
| Minimum packing unit | 100 pcs |
|---|
The minimum packing unit is 100 pieces.
Both a standard type and a horizontal type are available.
