RK09K11310KB is a resistor produced by Alps company. Its resistance is 10kΩ ±20%, power is 0.05W, and rated voltage is 50V AC, 20V DC.

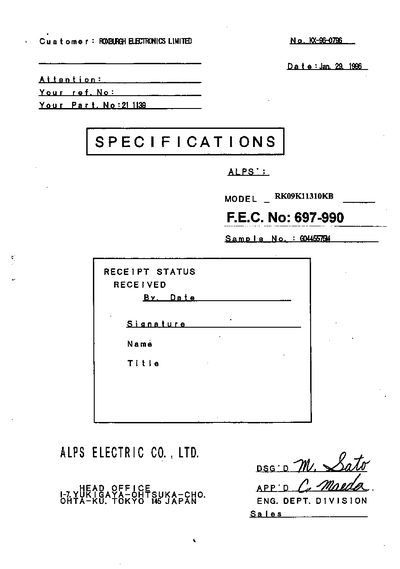

This document provides the full technical specifications for the Alps RK09K11310KB potentiometer, covering electrical characteristics, mechanical dimensions, and endurance limits. It is intended for designers and engineers who need precise data for integration of the component into electronic assemblies.
Key sections include electrical parameters such as rated power and insulation resistance, mechanical data like rotational angle and shaft tolerances, and environmental limits for operating and storage temperatures. The sheet also lists endurance requirements such as minimum rotational life.
| Rated Power | 0.05 W |
|---|---|
| Sliding Noise | < 100 mV |
| Insulation Resistance | ≥ 100 MΩ (250 V DC) |
| Withstand Voltage | ≥ 250 V AC |
| Overall Rotational Angle | 280° ±5° |
| Rotational Life | ≥ 5,000 cycles |
The rated power is 0.05 W.
The sliding noise must be less than 100 mV.
The potentiometer is rated for at least 5,000 cycles.
