This document introduces various control devices and variable resistor switch types, including push, slide, and rotary encoders. The products have various features and characteristics such as operating angle range, maximum resolution, operating force, and lifespan.

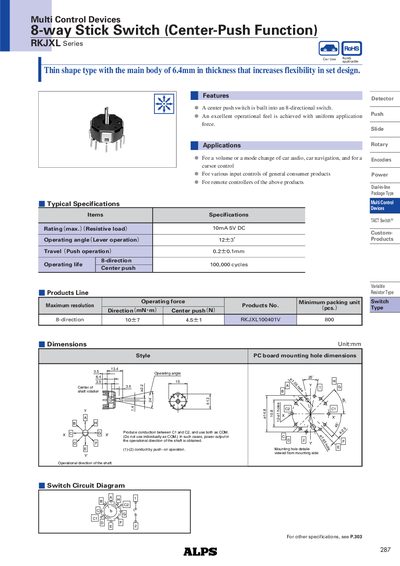

The RKJXL Series is an 8‑directional stick switch with a built‑in center‑push function, designed for thin‑profile installations (6.4 mm thickness). It provides uniform push force and is suitable for car audio, navigation, consumer product controls, and remote controllers.
Typical specifications include a 10 mA resistive load rating at 5 V DC, a lever operating angle of about 124°, a push travel of 0.2 mm, and an operating life of 100,000 cycles. The part number RKJXL100401V identifies a specific variant, and mounting dimensions are provided for PCB integration.
| Rating (max.) (Resistive load) | 10 mA at 5 V DC |
|---|---|
| Operating angle (Lever operation) | 124 ± 3° |
| Travel (Push operation) | 0.2 ± 0.1 mm |
| Operating life | 100,000 cycles |
| Part number | RKJXL100401V |
It is rated for a maximum resistive load of 10 mA at 5 V DC.
The switch is rated for an operating life of 100,000 cycles.
The push travel is specified as 0.2 mm with a tolerance of ±0.1 mm.
