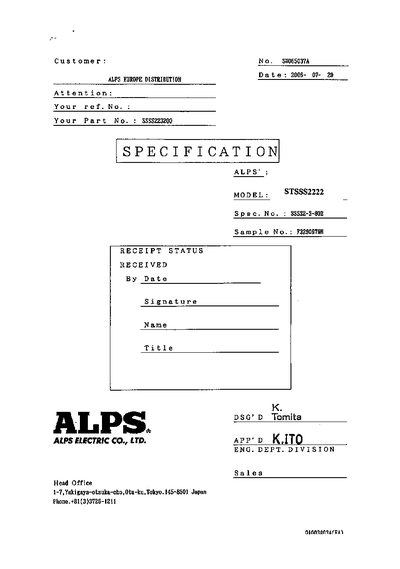

This document is about the specifications of ALPS STSSS2222 slide switch. The specification sheet includes the application range, operating temperature range, storage temperature range, test conditions, appearance, construction, dimensions, rated value, electrical specifications and other information of the slide switch.
This document provides the detailed product specifications for the ALPS 84464 switch, including electrical, mechanical and environmental requirements. It lists test conditions, contact resistance limits, insulation resistance, voltage proof tests and operating force tolerances.
The sheet also contains handling precautions, recommended soldering practices, storage guidelines, and a circuit diagram reference for integration into electronic equipment.
| Voltage proof test voltage | 500 VAC |
|---|
A 500 VAC test voltage is applied for the voltage‑proof test.
