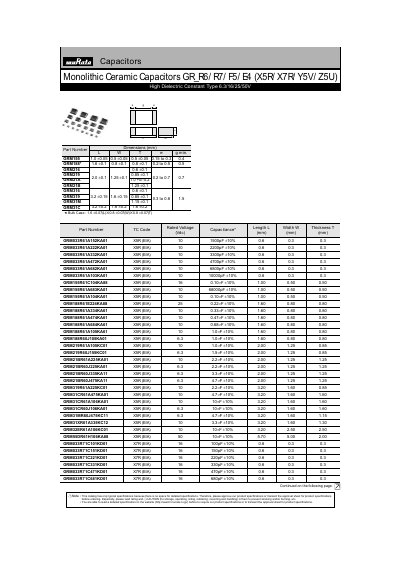

MURATA Monolithic Ceramic Capacitors GR_R6/R7/F5/E4 (X5R/X7R/Y5V/Z5U)
The document provides a catalog of typical specifications for Murata's GR_R6/R7/F5/E4 series of monolithic ceramic capacitors. It lists part numbers, rated voltages, capacitance values, physical dimensions, and test methods for each variant.
Caution notes emphasize proper storage, handling, soldering, and mounting to avoid smoking or burning. Detailed test procedures for insulation resistance, capacitance drift, and vibration resistance are also included, with references to the Murata website for full specifications.
Murata X7R specifications
| Capacitance Tolerance | ±10 % (typical) |
|---|---|
| Maximum Insulation Resistance | ≥10 MΩ |
| Typical Length (GRM188 series) | 1.6 mm ± 0.07 mm |
Source: MURATA Monolithic Ceramic Capacitors GR_R6/R7/F5/E4 (X5R/X7R/Y5V/Z5U)
All Murata X7R documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How should insulation resistance be measured?
Measure insulation resistance with a DC voltage that does not exceed the rated voltage, at 20 °C/25 °C and 75 % RH, within two minutes of charging.
From: MURATA Monolithic Ceramic Capacitors GR_R6/R7/F5/E4 (X5R/X7R/Y5V/Z5U)
What voltage is applied for high‑dielectric‑constant type testing?
Apply 250 % of the rated voltage for 1 to 5 seconds while keeping the charge/discharge current below 50 mA.
From: MURATA Monolithic Ceramic Capacitors GR_R6/R7/F5/E4 (X5R/X7R/Y5V/Z5U)
What is the operating temperature range for the R7 series capacitors?
The R7 series operates from –55 °C to +125 °C.
What voltage test is required for temperature‑compensating type capacitors?
No failure should be observed when 300 % of the rated voltage is applied.
