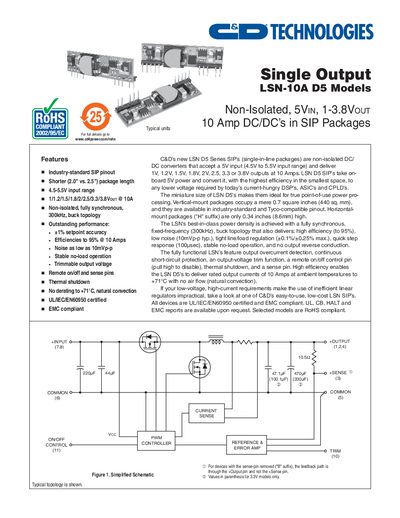

This datasheet provides detailed specifications for the C&D LSN-10A D5 Series SIP non-isolated DC/DC converters. These converters accept a 5V input (4.5V to 5.5V input range) and deliver 1V, 1.2V, 1.5V, 1.8V, 2V, 2.5, 3.3 or 3.8V outputs at 10 Amps.
The LSN-10A D5 series from C&D Technologies provides non‑isolated, fully synchronous buck converters in single‑in‑line (SIP) packages. They accept a 4.5‑5.5 V input and deliver selectable output voltages from 1 V to 3.8 V at up to 10 A, with efficiencies reaching 95 %.
These devices include features such as remote on/off control, output‑voltage trim, thermal shutdown, and over‑current protection. They are UL/IEC/EN60950 certified, RoHS compliant, and available in both vertical‑mount (0.34 in high) and horizontal‑mount (0.7 sq in) configurations.
| Input Voltage Range | 4.5 V – 5.5 V (5 V nominal) |
|---|---|
| Output Voltage Options | 1, 1.2, 1.5, 1.8, 2, 2.5, 3.3, or 3.8 V |
| Maximum Output Current | 10 A |
| Efficiency (full load) | up to 95 % |
| Switching Frequency | 800 kHz (±40 kHz) |
| Thermal Shutdown Temperature | +71 °C (no airflow) |
| Package Footprint | 0.7 sq in (440 mm²) |
| Output Noise | 10 mVp‑p typ. |
| Regulation Accuracy | +0.1 % / +0.25 % max. |
The converters operate with an input voltage from 4.5 V to 5.5 V (5 V nominal).
Each device can supply up to 10 A of continuous output current.
The converters achieve up to 95 % efficiency at full load.
