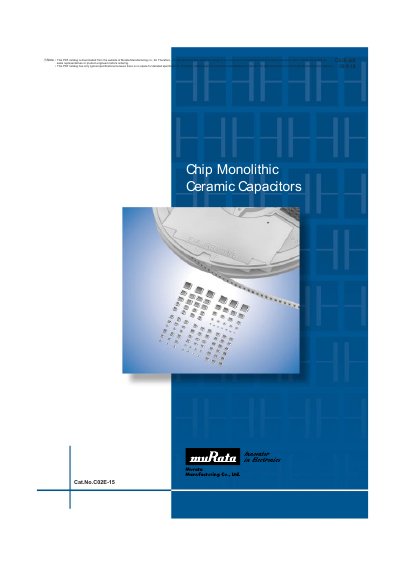

This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. It provides specifications and test methods for their Cat.No.C02E-15 series monolithic ceramic capacitors. The catalog also includes specifications and test methods for other series such as the general-purpose GRM series, low ESL LLL/LLA/LLM series, high-Q type GJM series, etc.
The C02E catalog from Murata covers a wide range of chip monolithic ceramic capacitor series, including GRM, GNM, LLL/LLA/LLM, GJM, GQM, ERB, GMA and GMD. It lists typical specifications, part‑numbering, and test methods, and includes safety cautions and notices about product changes.
The document also gives a selection guide with capacitance ranges, rated voltage options, temperature characteristics, and packaging types such as embossed tape and bulk case. Applications mentioned span general electronic equipment, automotive power‑train, LCD backlight inverters, camera flash circuits, and information devices.
| Capacitance Range | 0.1 pF – 100 µF |
|---|
Check the Murata home page at http://www.murata.com/index.html for the missing part number.
Capacitance is expressed in pico‑farads (pF).
