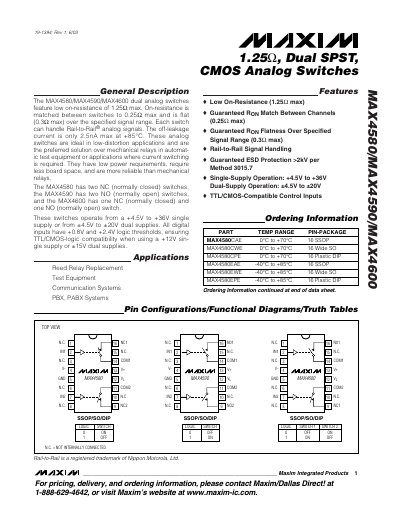

MAX4580/MAX4590/MAX4600 dual analog switches feature low on-resistance (1.25Ω max).
The MAX4580, MAX4590 and MAX4600 are dual SPST CMOS analog switches featuring a low on‑resistance of 1.25 Ω max and matched channels (0.25 Ω max). They handle rail‑to‑rail signals, operate from +4.5 V to +36 V single‑supply or ±4.5 V to ±20 V dual‑supply, and provide TTL/CMOS‑compatible logic inputs (0.8 V / 2.4 V thresholds).\n\nThe devices offer low off‑leakage (2.5 nA max at +85 °C), fast switching (typical tON 150 ns, tOFF 200 ns), and robust ESD protection (>2 kV). Package options include 16‑pin SSOP, Wide‑SO, and Plastic DIP, with detailed ordering information and test circuit diagrams included.
| On‑Resistance (RON) max | 1.25 Ω |
|---|---|
| On‑Resistance match max | 0.25 Ω |
| On‑Resistance flatness max | 0.3 Ω |
| Off‑Leakage current max | 2.5 nA @ +85 °C |
| Supply voltage range (single) | +4.5 V to +36 V |
| Logic input thresholds | 0.8 V (low) / 2.4 V (high) |
| Typical turn‑on time | 150 ns |
| Typical turn‑off time | 200 ns |
| Crosstalk | -65 dB |
| Charge injection | 40 pC |
The maximum on‑resistance is 1.25 Ω.
The off‑leakage current is limited to 2.5 nA max at +85 °C.
Logic low is 0.8 V and logic high is 2.4 V.
