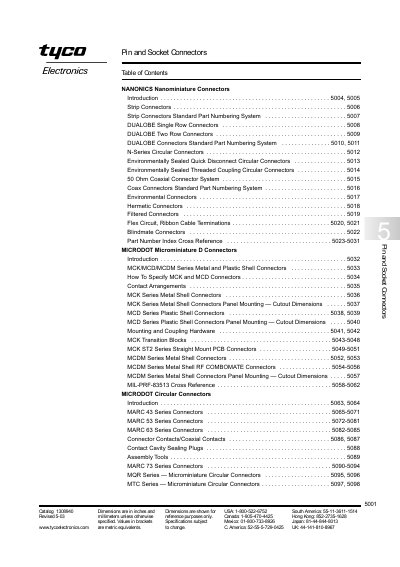

This catalog introduces Tyco Electronics' miniature connectors, including NANOMIC series miniature connectors, pin and socket connectors, pin connectors and sockets, and dual-lobe connectors
This catalog presents Tyco's full line of pin and socket connectors, including Strip Connectors, DUALOBE single‑ and two‑row connectors, N‑Series circular connectors, and MICRODOT microminiature D connectors. Each series is described with part‑numbering, mounting options, and application notes.
Technical data such as contact current, resistance, engage force, temperature range, and insulation resistance are provided, together with dimensional tables, mounting hardware details, and cross‑reference information for MIL‑STD and commercial parts.
| Contact Current | 4 A continuous |
|---|---|
| Contact Resistance | 0.003‑0.008 Ω |
| Engage Force | 1.0 oz per contact |
| Wire Size / Current | 30 AWG & smaller – 1 A |
| Contact Pitch | 0.025 in (0.635 mm) |
| Insulation Resistance | 1000 MΩ |
| Temperature Range | -328 °F to +437 °F (‑200 °C to +225 °C) |
| Dielectric Voltage (Plastic) | 500 VDC |
| Dielectric Voltage (Metal) | 400 VDC |
The contacts are rated for 4 A continuous current.
They operate from –328 °F (‑200 °C) up to +437 °F (+225 °C).
The insulation resistance is specified as 1000 MΩ.
