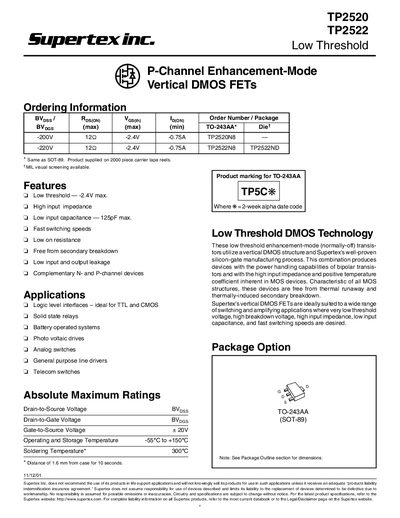

TP2520 and TP2522 are low-threshold enhancement-mode vertical DMOS FETs that are used for logic level interfaces, ideal for TTL and CMOS, solid state relays, battery-operated systems, photovoltaic drives, analog switches, general purpose line drivers and telecom switches.
The TP2520 and TP2522 are vertical DMOS FETs offering low threshold voltage, high breakdown voltage, and fast switching suitable for logic‑level interfaces, solid‑state relays, battery‑operated systems, photovoltaic drives, analog switches, general‑purpose line drivers, and telecom switches.
Key specifications include a drain‑to‑source voltage of –200 V (TP2520) or –220 V (TP2522), gate‑threshold voltage of –1.0 V to –2.4 V, input capacitance of 75‑125 pF, on‑resistance of 8‑12 mΩ, operating temperature range –55 °C to +150 °C, and a recommended soldering temperature of 300 °C.
| Gate Threshold Voltage (Vgs(th)) | -1.0 V to -2.4 V |
|---|---|
| Input Capacitance (Ciss) | 75 pF – 125 pF |
| On‑Resistance (Rds(on)) | 8 mΩ – 12 mΩ |
| Operating Temperature Range | -55 °C to +150 °C |
| Recommended Soldering Temperature | 300 °C |
Supertex recommends a soldering temperature of 300 °C for the TP2520/TP2522.
They are ideal for logic‑level interfaces, solid‑state relays, battery‑operated systems, photovoltaic drives, analog switches, general‑purpose line drivers, and telecom switches.
No, Supertex does not recommend using its products in life‑support applications.
