tp2522 features low threshold - 2.4v max. high input impedance low input capacitance - 125pf max. fast switching speeds low on-resistance free from secondary breakdown low input and output leakage complementary n and p channel devices applications logic level interfaces - ideal for ttl and cmos solid state relays battery operated systems photovoltaic drives analog switches general purpose line drivers telecom switches
The Supertex TP2522 is a low threshold enhancement-mode (normally-off) transistor utilizing a vertical DMOS structure. It combines the power handling capabilities of bipolar transistors with the high input impedance and positive temperature coefficient inherent in MOS devices, making it free from thermal runaway.

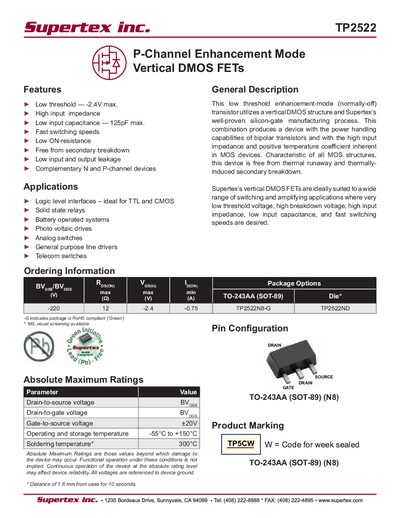

This document provides absolute maximum ratings, electrical characteristics at 25°C, typical performance curves for output and capacitance, switching waveforms, and a package outline for the TO-243AA (SOT-89) configuration.
| Input capacitance (Ciss) | 75 to 125 pF |
|---|---|
| Operating and storage temperature | -55°C to +150°C |
| Package type | TO-243AA (SOT-89) |
