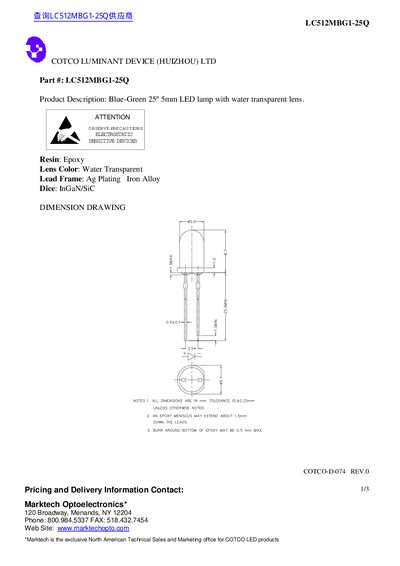

LC512MBG1-25Q is a blue-green 5mm LED lamp with water transparent lens produced by COTCO
The LC512MBG1-25Q LED lamp is manufactured by COTCO Luminant Device (Huizhou) Ltd and marketed in North America by Marktech Optoelectronics. It features a blue‑green color, 5 mm package size, and a water‑transparent epoxy lens.
Key specifications include a forward current of 25 mA (peak 100 mA), reverse voltage of 5 V, power dissipation of 120 mW, operating temperature range of –20 °C to +75 °C, luminous intensity between 770 and 1300 mcd, and a dominant wavelength of 505 nm.
| Forward Current | 25 mA |
|---|---|
| Peak Forward Current | 100 mA |
| Reverse Voltage | 5 V |
| Power Dissipation | 120 mW |
| Operating Temperature | -20~+75 °C |
| Luminous Intensity | 770‑1300 mcd |
| Wavelength | 505 nm |
| Lens Color | Water Transparent |
The typical forward current is 25 mA, with a peak rating of 100 mA.
The dominant wavelength is 505 nm.
The lens is water‑transparent.
The device can tolerate up to 5 V reverse voltage.
