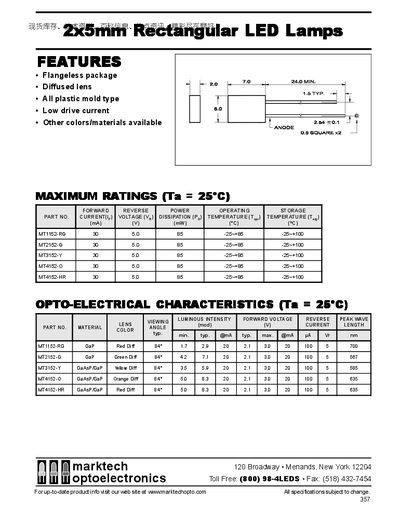

2x5mm rectangular LED Lamps, Flangeless package, Diffused lens, All plastic mold type, Low drive current, Other colors/materials available
The Marktech 2×5mm rectangular LED lamps are offered in a flangeless, all‑plastic package with a diffused lens. They are available in several colors (red, green, yellow, orange) and can be ordered in other colors or materials.
Maximum ratings include a forward current of 30 mA, forward voltage of 5.0 V, power dissipation of 85 mW, and operating temperature from –25 °C to +85 °C (storage up to +100 °C). Detailed opto‑electrical characteristics such as luminous intensity, peak wavelength and material type are listed for each part number.
| Package type | Flangeless |
|---|---|
| Lens type | Diffused |
They use a flangeless package.
