marktech 2x4mm rectangular led lamps feature diffused lens, plastic mold type, low drive current, and other colors/materials are available.
MARKtech offers 2 × 4 mm rectangular surface‑mount LED lamps with a diffused plastic lens and low drive current. The lamps are available in several colors and material types such as GaP for red, green, yellow, and orange.

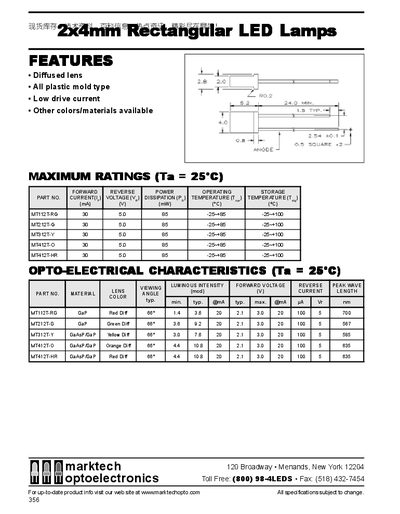

The data sheet provides maximum forward current (30 mA), operating temperature range (‑25 °C to +85 °C), storage range (‑25 °C to +100 °C), typical forward voltage (≈2.0 V), luminous intensity (≈36 cd for red), and a 66° viewing angle. Part numbers MT112T‑RG, MT212T‑G, MT312T‑Y, MT412T‑O, and MT412T‑HR identify each color variant.
| Lens type | Diffused |
|---|---|
| Package material | All plastic mold type |
| Drive current | Low |
| Maximum forward current | 30 mA |
| Material (red) | GaP |
