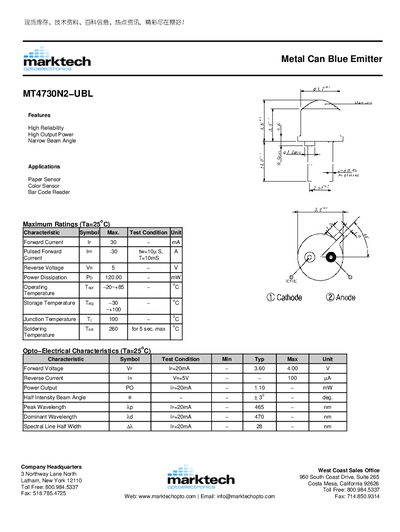

MT4730N2-UBL is a metal can blue emitter produced by Marktechopto. Its features include high reliability, high output power, and narrow beam angle. It is mainly used in paper sensors, color sensors, and bar code readers.
The MT4730N2-UBL is a metal‑can blue emitter designed for applications such as paper sensors, color sensors and barcode readers. It offers high reliability, high output power and a narrow beam angle.
Key specifications include a forward voltage of 3.60 V (typ) to 4.00 V (max) at 20 mA, peak wavelength of 465 nm, operating temperature range of –20 °C to +85 °C, and a half‑intensity beam angle of about +3°.
| Forward Voltage (typ) | 3.60 V |
|---|---|
| Reverse Voltage | 5 V |
| Power Output | 1.10 mW |
| Half‑Intensity Beam Angle | +3° |
| Soldering Temperature | 260 °C (5 s max) |
Typical forward voltage is 3.60 V and maximum is 4.00 V at 20 mA.
It is suitable for paper sensors, color sensors and barcode readers.
