MT4164S4-HR6-2 is a red panel mount LED produced by Marktechopto. It has low current requirements, high light output, and is reliable and rugged.
The Marktech MT4164S4-HR6-2 is a red panel‑mount LED featuring low current requirements, high light output, and a rugged design. It includes a diffused red lens and is compatible with standard opto‑electrical circuits.

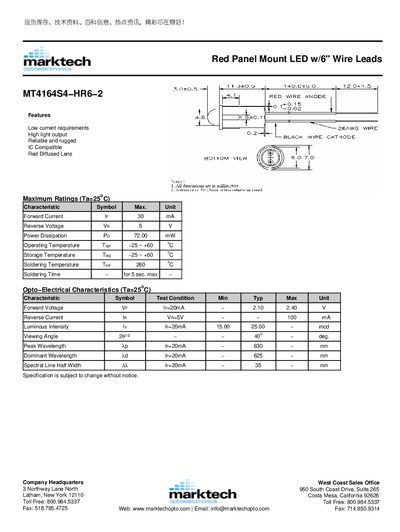

The sheet provides maximum ratings, opto‑electrical characteristics, and typical performance graphs, along with mechanical dimensions and recommended soldering conditions.
| Forward Current | 30 mA |
|---|---|
| Reverse Voltage | 5 V |
| Power Dissipation | 72.00 mW |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -25 ~ +60 °C |
| Soldering Temperature | 260 °C |
| Forward Voltage (IF=20 mA) | 2.10 – 2.40 V |
| Reverse Current (Vr=5 V) | ≤100 mA |
| Luminous Intensity (IF=20 mA) | 15 – 25 cd |
| Peak Wavelength (IF=20 mA) | 630 nm |
| Dominant Wavelength (IF=20 mA) | 625 nm |
| Spectral Line Half Width (IF=20 mA) | 35 nm |
The forward current rating is 30 mA.
The reverse voltage rating is 5 V.
It operates from –25 °C to +60 °C.
