Marktech Low Current 3mm LEDs are a series of LEDs produced by Marktech company. They have the characteristics of low current, high efficiency and super bright.
The MT4093 series are low‑current 3 mm LEDs optimized for low DC current operation and compatible with CMOS and TTL logic. Available in green, high‑efficiency red, ultra‑bright red, and yellow, they offer excellent brightness at 2 mA.

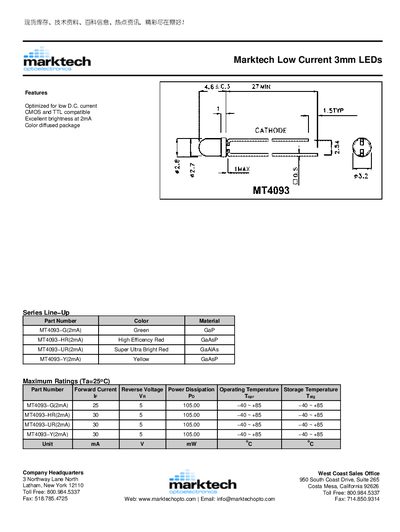

The datasheet lists electrical and optical characteristics such as forward current, reverse voltage, power dissipation, operating temperature range, peak wavelength, material, forward voltage, and luminous intensity for each part number (MT4093‑G, MT4093‑HR, MT4093‑UR, MT4093‑Y).
| Forward Current (max) | 25 mA (green) / 30 mA (other colors) |
|---|---|
| Reverse Voltage (max) | 5 V |
| Power Dissipation (max) | 105 mW |
| Peak Wavelength (green) | 565 nm |
| Material (green) | GaP |
| Typical Forward Voltage (green) | 2.20 V |
| Typical Luminous Intensity (green) | 3.20 cd |
