Blue Visible Emitter MT4730F-UBL is a high power emitter produced by Marktechopto. It has high reliability and is suitable for applications such as fiber optic communications, optical sensors, and indicators.
The MT4730F-UBL is a blue visible emitter designed for fiber‑optic communications and optical sensor applications. It offers high power output and high reliability in a compact package.

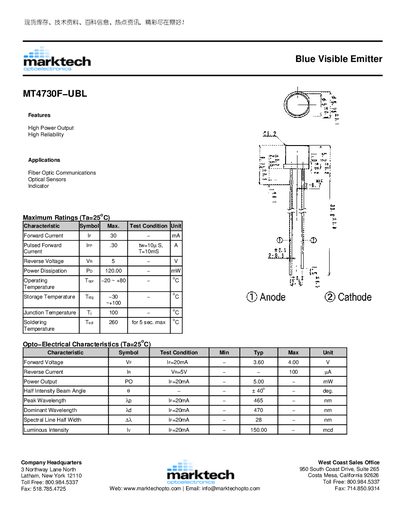

The sheet lists maximum ratings, opto‑electrical characteristics, and performance graphs such as forward I‑V curves, radiation pattern, thermal derating, and spectral output. Contact information for Marktech’s sales offices is also included.
| Forward Current (IF) Max | 30 mA |
|---|---|
| Reverse Voltage (VR) | 5 V |
| Power Dissipation (Po) | 120 mW |
| Operating Temperature | -20 °C to +80 °C |
| Luminous Intensity | 150 mcd |
| Spectral Line Half Width | 28 nm |
The maximum forward current is 30 mA.
It operates from –20 °C to +80 °C.
