This document describes the features and characteristics of Blue Visible Emitter MT4730P−UBL, including narrow beam angle and compact package. The product is suitable for applications such as optical switches and edge sensing.
The MT4730P-UBL is a compact blue visible emitter featuring a narrow beam angle and a compact package. It is intended for optical switching and edge sensing applications.

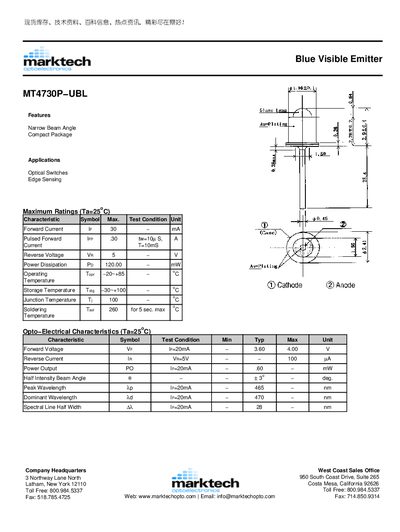

The datasheet provides maximum ratings, opto‑electrical characteristics, and performance graphs, including forward current, reverse voltage, power dissipation, operating temperature range, and wavelength data.
| Forward Current (IF) max | 30 mA |
|---|---|
| Reverse Voltage (VR) | 5 V |
| Power Dissipation (Po) | 120 mW |
| Operating Temperature | -20 °C to +85 °C |
| Forward Voltage (Vf) typ | 4.00 V |
| Peak Wavelength | 465 nm |
| Dominant Wavelength | 470 nm |
| Spectral Line Half Width | 28 nm |
The maximum forward current is 30 mA.
The peak wavelength is 465 nm.
The device operates from –20 °C to +85 °C.
The typical forward voltage is 4.00 V.
