The MAX9502 is a small, low-power video amplifier with integrated reconstruction filter that operates from a supply voltage as low as 2.5V.

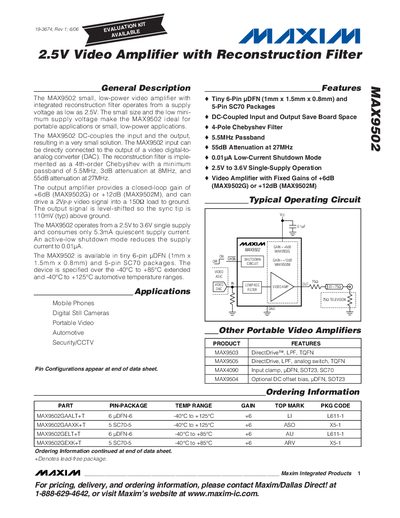

The MAX9502 is a small, low‑power video amplifier that operates from a single 2.5 V to 3.6 V supply. It includes a 4th‑order Chebyshev reconstruction filter and offers fixed gains of +6 dB (MAX9502G) or +12 dB (MAX9502M). The device can drive a 2 Vp‑p video signal into a 150 Ω load while consuming only 5.3 mA quiescent current.
The datasheet provides absolute maximum ratings, DC and AC electrical characteristics, typical operating curves, pin descriptions, and package information for both 6‑pin UDFN and 5‑pin SC70 options. Application notes cover input and output considerations, short‑circuit protection behavior, and layout recommendations for portable video and camera systems.
| Quiescent Supply Current | 5.3 mA |
|---|---|
| Fixed Gain (MAX9502G) | +6 dB |
| Passband | 5.5 MHz |
| Attenuation at 27 MHz | 55 dB |
| Input Voltage Range (MAX9502G, 2.5‑3 V supply) | 0‑1.05 V |
