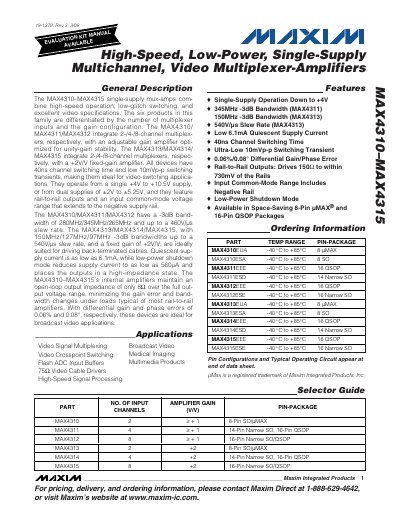

The MAX4310–MAX4315 family provides high‑speed, low‑power, single‑supply multiplexed video amplifiers. Devices are offered in 2‑, 4‑ or 8‑channel versions with either adjustable unity‑gain or fixed +2 V/V gain, optimized for broadcast‑video applications.
Key features include 40 ns channel‑switching time, ultra‑low 10 mV p‑p switching transients, rail‑to‑rail inputs and outputs, and a low quiescent current of 6.1 mA (560 µA in shutdown). The series operates from +4 V to +10.5 V (or ±2 V to ±5.25 V) and supports high‑speed video‑line driving up to 20 pF loads.
| Quiescent Supply Current | 6.1 mA (560 µA shutdown) |
|---|---|
| Channel Switching Time | 40 ns |
| Slew Rate (MAX4313‑MAX4315) | 540 V/µs |
| Output Current | ±120 mA |
| Bandwidth (MAX4311) | 345 MHz (-3 dB) |
| Fixed Gain (MAX4313‑MAX4315) | +2 V/V |
The devices switch channels in 40 ns.
Typical quiescent current is 6.1 mA, dropping to 560 µA in shutdown mode.
The MAX4313 provides a slew rate of 540 V/µs.
