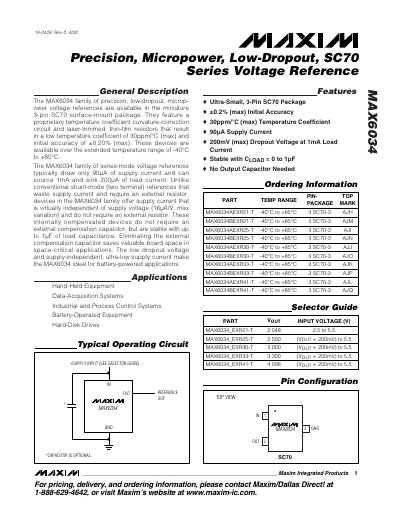

The MAX6034 family of precision, low-dropout, micropower voltage references are available in the miniature 3-pin SC70 surface-mount package. They feature a proprietary temperature coefficient curvature-correction circuit and laser-trimmed, thin-film resistors that result in a low temperature coefficient of 30ppm/°C (max) and initial accuracy of ±0.20% (max). These devices are available over the extended temperature range of -40°C to +85°C. The MAX6034 family of series-mode voltage references typically draw only 90µA of supply current and can source 1mA and sink 200µA of load current. Unlike conventional shunt-mode (two terminal) references that waste supply current and require an external resistor, devices in the MAX6034 family offer supply current that is virtually independent of supply voltage (16µA/V, max variation) and do not require an external resistor. These internally compensated devices do not require an external compensation capacitor, but are stable with up to 1µF of load capacitance. Eliminating the external compensation capacitor saves valuable board space in space-critical applications. The low dropout voltage and supply-independent, ultra-low supply current make the MAX6034 ideal for battery-powered applications.
The MAX6034 family provides precision, low‑dropout, micropower voltage references in a miniature 3‑pin SC70 package. They feature a proprietary temperature‑coefficient curvature‑correction circuit and laser‑trimmed thin‑film resistors, delivering a low temperature coefficient and high initial accuracy.
Typical specifications include a 90 µA quiescent supply current, up to 1 mA source and 200 µA sink capability, and stability with load capacitances from 0 to 1 µF. The devices operate over –40 °C to +85 °C and are suited for battery‑powered, hand‑held, and data‑acquisition applications.
| Temperature Coefficient | 30 ppm/°C (max) |
|---|---|
| Quiescent Supply Current | 90 µA (typical) |
| Dropout Voltage at 1 mA Load | 200 mV (max) |
| Load Capacitance Stability | 0 µF to 1 µF |
| Operating Temperature Range | -40 °C to +85 °C |
The MAX6034 typically draws 90 µA of supply current.
The device has a temperature coefficient of up to 30 ppm/°C.
The dropout voltage is specified as a maximum of 200 mV at a 1 mA load.
It remains stable with load capacitances from 0 µF up to 1 µF.
