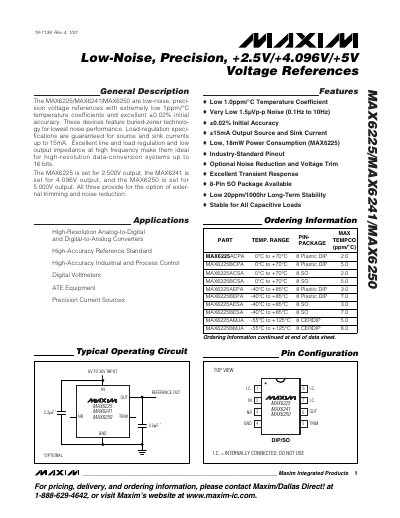

The MAX6225/MAX6241/MAX6250 are low-noise, precision voltage references with extremely low 1ppm/°C temperature coefficients and excellent ±0.02% initial accuracy. These devices feature buried-zener technology for lowest noise performance. Load-regulation specifications are guaranteed for source and sink currents up to 15mA. Excellent line and load regulation and low output impedance at high frequency make them ideal for high-resolution data-conversion systems up to 16 bits. The MAX6225 is set for 2.500V output, the MAX6241 is set for 4.096V output, and the MAX6250 is set for 5.000V output. All three provide for the option of external trimming and noise reduction. Applications include High-Resolution Analog-to-Digital and Digital-to-Analog Converters, High-Accuracy Reference Standard, High-Accuracy Industrial and Process Control, Digital Voltmeters, ATE Equipment, and Precision Current Sources.
The MAX6225, MAX6241, and MAX6250 are low‑noise, precision voltage references designed for high‑resolution data‑conversion systems. They provide stable output voltages of 2.5 V, 4.096 V, and 5 V respectively, with options for external trimming and noise reduction. Typical applications include high‑accuracy ADC/DAC reference standards, industrial process control, and precision instrumentation.
Key specifications include a temperature coefficient as low as 1.0 ppm/°C, noise as low as 1.5 µV p‑p (0.1 Hz‑10 Hz), ±0.02% initial accuracy, and ±15 mA source/sink capability. The devices are offered in 8‑pin SO and 8‑pin plastic DIP packages and operate over a wide temperature range, supporting capacitive loads up to 100 µF.
| Temperature Coefficient | 1.0 ppm/°C |
|---|---|
| Output Noise | 1.5 µV p‑p (0.1 Hz‑10 Hz) |
| Initial Accuracy | ±0.02% |
| Source/Sink Current | ±15 mA |
| Power Consumption (MAX6225) | 18 mW |
| Long‑Term Stability | 20 ppm/1000 hr |
| Package Type | 8‑Pin SO / 8‑Pin Plastic DIP |
The MAX6225 has a temperature coefficient of 1.0 ppm/°C.
The MAX6250 is set for a 5.000 V output.
Each device can source or sink up to ±15 mA of current.
