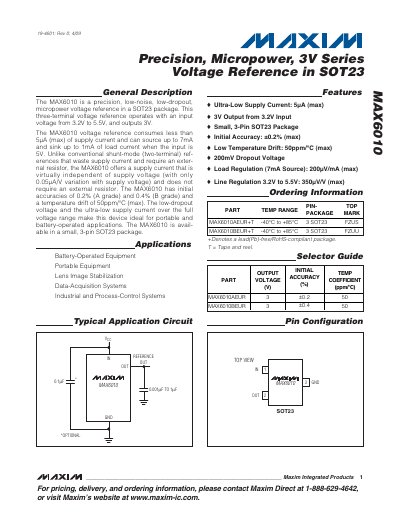

The MAX6010 is a precision, low-noise, low-dropout, micropower voltage reference in a SOT23 package. This three-terminal voltage reference operates with an input voltage from 3.2V to 5.5V, and outputs 3V. The MAX6010 voltage reference consumes less than 5µA (max) of supply current and can source up to 7mA and sink up to 1mA of load current when the input is 5V. Unlike conventional shunt-mode (two-terminal) references that waste supply current and require an external resistor, the MAX6010 offers a supply current that is virtually independent of supply voltage (with only 0.05µA/V variation with supply voltage) and does not require an external resistor. The MAX6010 has initial accuracies of 0.2% (A grade) and 0.4% (B grade) and a temperature drift of 50ppm/°C (max). The low-dropout voltage and the ultra-low supply current over the full voltage range make this device ideal for portable and battery-operated applications. The MAX6010 is available in a small, 3-pin SOT23 package.
The MAX6010 is a three‑terminal voltage reference that operates from 3.2 V to 5.5 V input and provides a stable 3 V output. It is designed for portable, battery‑operated equipment and other low‑power applications, offering ultra‑low supply current and no external resistor requirement.
Key performance figures include a typical output voltage of 3.000 V, supply current under 5 µA (max), dropout voltage of 200 mV (max), line regulation of 350 µV/V (max), load regulation of 200 µV/mA (max), and temperature drift of 50 ppm/°C (max). The device can source up to 7 mA and sink up to 1 mA while operating from –40 °C to +85 °C.
| Output Voltage (typ) | 3.000 V |
|---|---|
| Supply Current (max) | <5 µA |
| Dropout Voltage (max) | 200 mV |
| Temperature Drift | 50 ppm/°C (max) |
| Line Regulation (max) | 350 µV/V |
| Load Regulation (max) | 200 µV/mA |
| Input Voltage Range | 3.2 V – 5.5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Maximum Source Current | 7 mA |
| Maximum Sink Current | 1 mA |
The device provides a 3 V output.
It consumes less than 5 µA (max) of supply current.
It operates with an input voltage from 3.2 V to 5.5 V.
The maximum dropout voltage is 200 mV.
