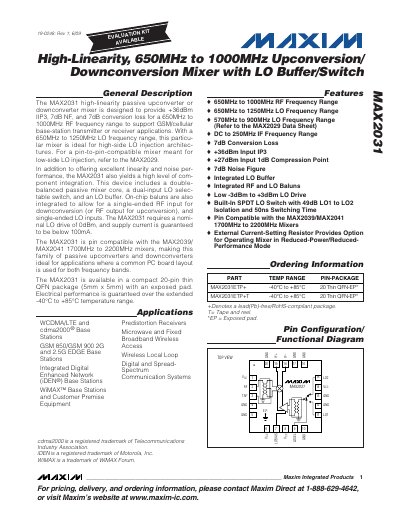

The MAX2031 is a high-linearity passive upconverter or downconverter mixer designed to provide +36dBm IIP3, 7dB NF, and 7dB conversion loss for a 650MHz to 1000MHz RF frequency range to support GSM/cellular base-station transmitter or receiver applications.
The MAX2031 mixer is a double‑balanced passive device with an integrated LO buffer, SPDT LO switch, and on‑chip baluns. It supports both up‑conversion and down‑conversion modes, a 650 MHz–1000 MHz RF range, and a 650 MHz–1250 MHz LO range, making it suitable for GSM/base‑station transmitter and receiver designs.
The part is supplied in a 20‑pin thin QFN package (5 mm × 5 mm) with an exposed pad, operates from 4.75 V to 5.25 V, and draws less than 100 mA. Electrical performance is guaranteed from –40 °C to +85 °C, and the device is pin‑compatible with MAX2039/MAX2041 mixers for multi‑band PCB layouts.
| RF Frequency Range | 650 MHz – 1000 MHz |
|---|---|
| LO Frequency Range | 650 MHz – 1250 MHz |
| Conversion Loss | 7 dB |
| Input Third‑Order Intercept Point (IIP3) | +36 dBm |
| Input 1 dB Compression Point | +27 dBm |
| Noise Figure | 7 dB |
| Supply Voltage | 4.75 V – 5.25 V |
| Supply Current | < 100 mA |
| Package | 20‑pin thin QFN (5 mm × 5 mm) with exposed pad |
The MAX2031 draws less than 100 mA under normal operating conditions.
The typical conversion loss is 7 dB.
Yes, it is pin‑compatible with the MAX2039 and MAX2041 1700 MHz–2200 MHz mixers.
